Door Interlock System

Secure controlled-access areas — only one door opens at a time.

No two consecutive doors open at once — isolates classified pressure zones and prevents cross-contamination in clean rooms.
Master logic-controller card — the interlock logic can be updated or migrated to meet changing regulatory guidelines.
In-built fire safety and emergency-exit bypass — all doors open automatically in an emergency.
Auto fault-detection with a real-time display console and alerts; supports 4 / 8 / 16-door systems with electromagnetic, plunger or mechanical locks.

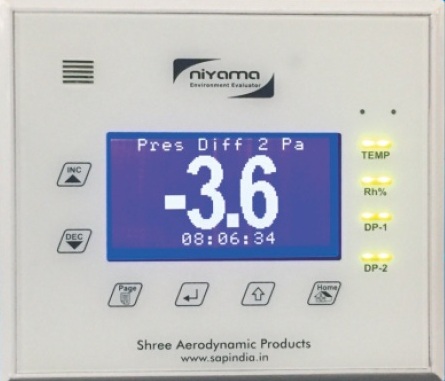

Environment Monitoring System (EMS)

Real-time monitoring of pressure, temperature & humidity.

Monitors temperature, relative humidity and differential / absolute pressure 24×7 with local display and alerts.
Real-time alarms, data logging and reports with PC and smart-mobile software.
Self-forming RF mesh network — up to 65,536 wireless nodes over RF / WiFi.
21 CFR Part 11 compliant — audit trail and electronic signatures; ideal for clean rooms, AHUs, cold stores and vaccine storage.

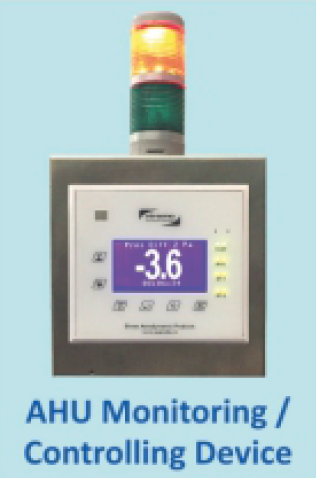

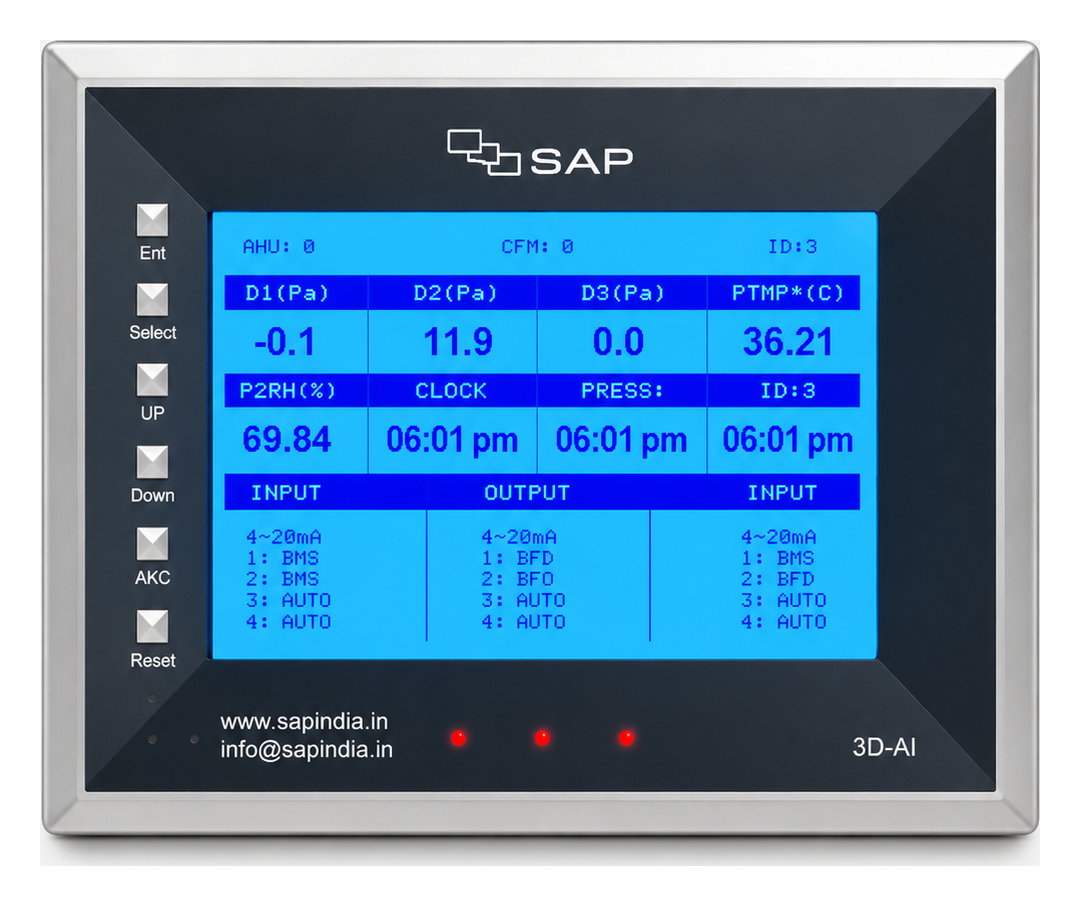

AHU control and building automation from one panel-mounted controller.

Supervises AHU performance from a single panel — three differential-pressure channels (Pa), process temperature and relative humidity on one always-on display, with AHU, CFM and unit ID at a glance.
Isolated field I/O — 0–10 VDC / 4–20 mA inputs for RH, temperature and differential-pressure control, 5–24 VDC digital inputs, and eight isolated relay outputs (N1–N8) for dampers, VFDs and interlocks.
Wired and wireless connectivity — two RJ45 ports plus Wi-Fi, GSM and GPS options, so the controller reports into the EMS network, SCADA or a central BMS head-end for logging and alarms.
